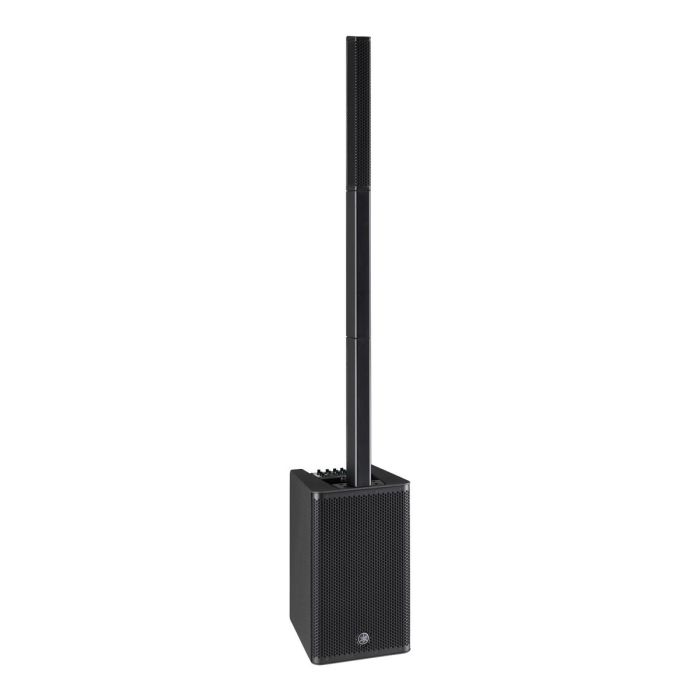

Yamaha Stagepas 1K MKII
In stock
Phone 0141 955 1812 or Send Email for availability.
SKU
HM6012_1
12“ Sub / 10 x 1,5“ HF drivers / 1000W / 5 CH Digital Mixer
- Simple setup and expandability
- Wireless audio (Bluetooth®)
- J-Curve slim line array & class-leading 12-inch “compact” Subwoofer
- 1000W Class-D amplification
- Digital Mixer with versatile inputs
- Professional 1-knob controls
- Stagepas Editor remote application (iOS/Android)
- Fitted cover included, optional dolly
- Total weight only 23kg
Featuring a bold new design concept and significant improvements in audio performance, usability and portability, the new STAGEPAS 1K redefines the standard for portable PA systems.
A class leading 12'' woofer and array of 10 x 1.5'' tweeters come together to deliver crisply uniform sound with glittering highs and punchy lows. With a 1000 watt class-D amplifier, the system delivers up to 119 dB SPL. What's more, you'll get completely stable, distortion-free sound all the way up to the maximum sound levels. This is accomplished in part by the twisted flare port on the sub which reduces wind noise. All of this weighs in at just 23 kg so you won't be breaking your back between shows.
Be in charge of your sound. The digital mixer included in the back of the system makes your live sound life a breeze. One-knob effects handle all your processing needs, without the hassle. Control multiband EQ, compression, and digital reverb with the flick of a wrist. If you want more precise control of your settings you can download the STAGEPAS Editor app for iOS or Android, and control your system remotely.
With the Stagepas 1K you'll get all the connections you need for a gig. Three XLR/Jack combo inputs are included and can run at mic or line level, two of these are Hi-Z. This means you'll have a connection for any instrument or microphone.For background music between performances Bluetooth is available to easily and wirelessly connect another music player. Need even more coverage? Included link connectors mean it is easy to link two systems together and create a larger PA system.
Specifications
System Type: Powered subwoofer with a line array speaker
Frequency Response (–10 dB): 37 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical): 170° x 30°
Crossover Frequency: 240 Hz
Maximum Output Level(Measured peak, IEC noise at 1m): 119 dB SPL
Power Requirements: 110-120V 60Hz, 220-240V 50/60Hz
Power Consumption: 25W (idle), 85W (1/8 power)
Dimensions (W x H x D) System (maximum): 334 x 2,000 x 415 mm
Weight: 23.0 kg
The number of Mixing Channels: 5
Analog Inputs: Mono mic/line x 3, mono line x 2, stereo line x 1, LINK IN (MONO)
Bluetooth Audio Inputs: A2DP (SBC, AAC)
Content Protection Method: SCMS-T
Bluetooth Version: Ver 5.0
Transmission Frequencies: 2,402 - 2,480 MHz
Wireless Output Class: 1
Maximum Wireless Output Power (EIRP): 15 dBm (32 mW)
Channel Functions: Hi-Z switch: CH2/3
1-knob EQ: CH1/2/3, L/MONO, R, ST LINE
Modes: Speech/Music/Club
Reverb types: Hall/plate/room/echo on CH1/2/3
Outputs: Link out (mono/r), monitor out (mono)
External Controls: Reverb foot switch, STAGEPAS Editor (iOS/Android app)
Rated Output: Dynamic 1000W (Subwoofer: 810W, Line array speaker: 190W)
Line array speaker: Enclosed
Subwoofer: Bass-reflex type
Line array speaker: 1.5" (3.8 cm) Cone × 10
Subwoofer: 12" (30 cm) Cone
Dimensions (W x H x D)
Line array speaker: 67 x 562 x 86 mm
Spacer (each): 67 x 555 x 86 mm
Subwoofer: 334 x 550 x 418 mm
Line array speaker: 1.8 kg
Spacer (each): 0.6 kg
Subwoofer: 20.0 kg
Included in the package: Power cord x 1, Dedicated cover x 1, Owner’s Manual
Optional accessories sold separately: DL-SP1K (dedicated dolly)
| UNSPC Code | 45111705 - Public address systems |
|---|
